Garages > Single Car Garages > 2-Story Single > 2-Story Single Gambrel
14 x 28 2-Story Gambrel with optional carriage style garage door, gutters, exterior light, cupola and weathervane

2-Story Single Gambrel

Gambrel 2-Story Single Car Garage Features

First Floor

  • 4 x 4 Pressure Treated Skids form the foundation
  • Floor joists are standard 2 x 4’s 8″ on center
  • 3/4″ T&G SmartFinish Wood Flooring
  • Walls are Standard with 2 x 4s 16″ OC
  • 10′ High Walls
  • ½” LP Smartside Siding Finishes the Exterior OR
  • Optional (Cedar Creek Vinyl Siding w/ ½” Wood Sheating) OR
  • Optional (Hardi-Plank Lap Siding)
  • 1-9 x 7 Insulated Solid Steel Garage Door w/ Aluminum Floorguard
  • (Note: 8 x 7 Garage Door in 10′ Wide Buildings)
  • 36″ Insulated House Door w/ 9-Lite Glass
  • 2- 24 x 36″ Windows w/Screens (Downstairs)
  • 2- Pair of Shutters and Trim around Windows
  • Stairway to 2nd Floor with Railing

Second Floor

  • 2 x 6 Floorjoists 16″ OC (2 x 8s on 14′ Wide buildings)
  • 5/8″ SmartFinish Wood Flooring
  • 2- 24 x 36″ Windows w/Screens (Upstairs)
  • 2- Pair of Shutters and Trim around Windows
  • Rafters are constructed of 2 x 6s 24″ OC
  • 3 ½” x 7 ½” LVL Ridge Beam
  • 12- Pitch Roof or (Optional Gambrel Style)
  • Hurricane Ties securing Rafters to Wall
  • 7″ Gable Overhangs
  • Roof consists of ½” sheeting
  • Tar Paper
  • 30 year Architectural Shingles

Gambrel 2-Story Single Car Garage Examples

14x28-2-Story-Gambrel Click to Enlarge
14x28 Two-Story Gambrel Garage Click to Enlarge
12x24 2-Story Gambrel Garage with Optional Metal Roof and Gutters Click to Enlarge
Jay Garrell 12x24 Click to Enlarge
IMG_5875 Click to Enlarge
IMG_2567 Click to Enlarge
14x28 2- Story Gambrel with 2- 8' Overhangs Steve Odams Click to Enlarge

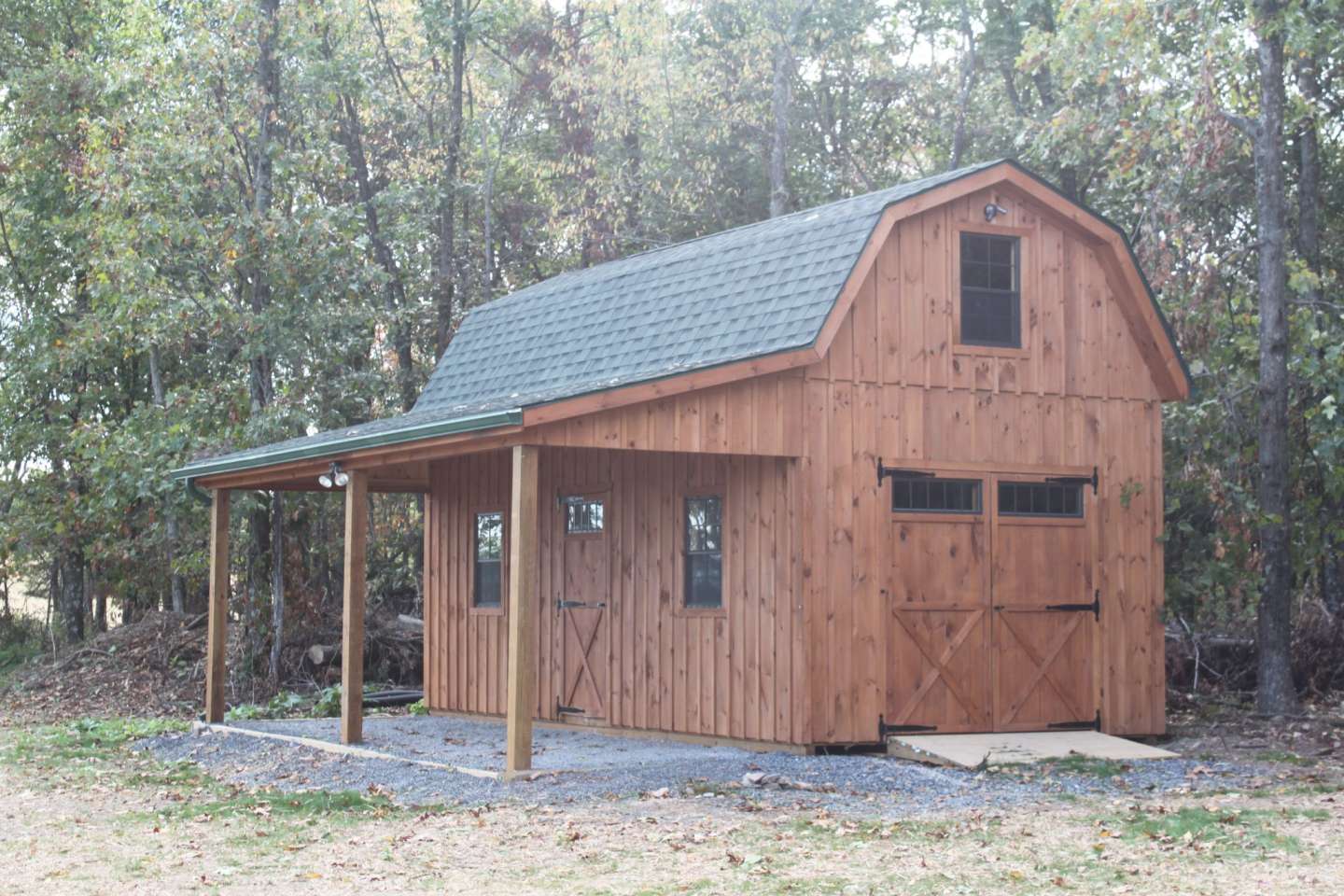

IMG_5879 Click to Enlarge

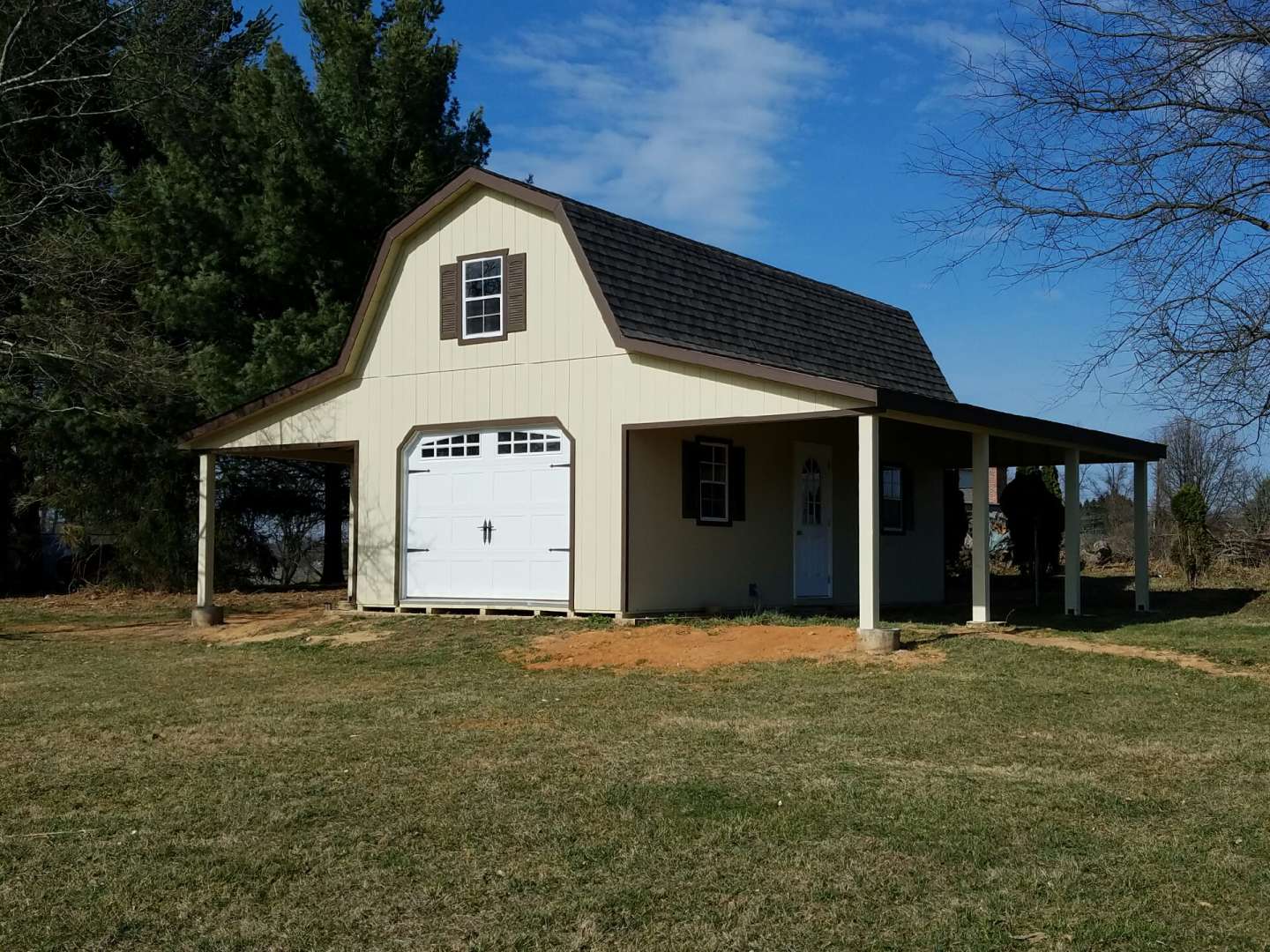

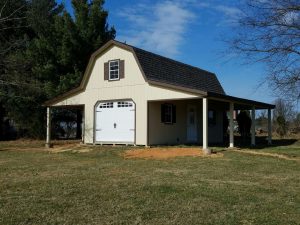

IMG_6426 Click to Enlarge

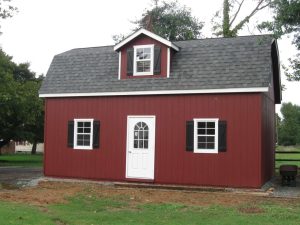

IMG_0867 Click to Enlarge

View Additional Photos & Videos

Gallery

Gambrel 2-Story Single Car Garage Prices

Prices shown are meant to be a guide and don’t include delivery or custom features. Once you find your size, click “Get A Quote” and fill out the form to submit your ideas to a project manager, who will reach out to you with a full quote!

Size Wood Vinyl & LP Board & Batten Hardie Plank & Pine Board & Batten
12 x 12  $  11,515  $  13,640  $  15,230
12 x 14  $  12,295  $  14,570  $  16,270
12 x 16  $  12,950  $  15,350  $  17,150
12 x 18  $  13,720  $  16,270  $  18,180
12 x 20  $  14,440  $  17,120  $  19,140
12 x 24  $  16,000  $  18,980  $  21,210
12 x 28  $  17,495  $  20,750  $  23,200
12 x 32  $  18,940  $  22,480  $  25,130
12 x 36  $  20,490  $  24,310  $  27,170
12 x 40  $  21,940  $  26,020  $  29,080
12 x 44  $  23,570  $  27,950  $  31,240
12 x 48  $  25,170  $  29,850  $  33,360
14 x 20  $  16,885  $  20,020  $  22,370
14 x 24  $  18,770  $  22,260  $  24,870
14 x 28  $  20,665  $  24,510  $  27,400
14 x 32  $  22,670  $  26,890  $  30,060
14 x 36  $  24,710  $  29,310  $  32,760
14 x 40  $  26,750  $  31,740  $  35,480
14 x 44  $  28,885  $  34,260  $  38,300
14 x 48  $  31,050  $  36,830  $  41,170
Get a Quote

Gambrel 2-Story Single Car Garage Options

Doors
Wood Doors
Double Wood Doors $250
Double Colonial Wood Door  $350
Double Wood Doors w/ Transom Windows  $400
Double Colonial Wood Doors w/ Transom Windows  $500
Carriage Wood Doors  $595
Single Wood Door  $150
Single Arched Wood Door  $250
Slab Doors
Single Fiberglass Slab Door  $175
Slab Door 4-Lite Glass  $245
Slab Door 6-Lite Glass  $245
Slab Door 9-Lite Glass  $245
Slab Door 11-Lite Glass  $245
Slab Door 15-Lite Glass  $295
Double Fiberglass Slab Doors  $350
Double Colonial Slab Doors  $390
House Doors
Solid House Door  $375
House Door 9-Lite  $445
House Door 11-Lite  $445
House Door 15-Lite  $520
Double Solid House Doors  $650
Double House Doors 9-Lite  $790
Double House Doors 11-Lite  $790
Double House Doors 15-Lite  $940
Garage Doors
9×7 Carriage Garage Door  $340
Sunburst Garage Door  $150
Add windows to overhead door $100
Door Hinges
Garden Hinge Single $8
Double $15
Standard Hinge Single $6
Double $12
Strap Hinge Single $18
Double $35
Door Handles
Standard Garage Door Latch
Garden Shed Latch
Carriage Garage Door Latch
Horse Shoe Latch
Standard Latch
Additional Door Options
12″ Wider Doors $40
24″ Wider Doors $60
Higher Doors 7′ $50
6′ Pine Carriage Doors w/ Glass $575
Extra Dutch Door 36″

42″

48″

 $300

$325

$350
Upgrade Double Dutch Door $350
Extra Double Dutch Door $600
8′ x 7′ Double Doors $100
Extra 8′ x 7′ Double Doors $350
8′ x 6′ 6″ Overhead Door $510
8′ x 6′ 6″ Insulated Overhead Door $610
9′ x 7′ Overhead Door $550
9′ x 7′ Insulated Overhead Door $650
Upgrade to Carriage Overhead Door $240
Upgrade to Insulated Carriage Overhead Door $340
Add 5′ or 6′ Double Arched Wood Doors $400
Upgrade to 5′ or 6′ Double Arched Wood Doors $100
Add 36″ Single Arched Wood Door $200
Add 36″ Single Arched Wood Door to Dormer $50
Upgrade to Colonial Wood Door $50/door
Add Transom Windows to Wood Door $75/door
Add Arched Transom Windows to Wood Door $125/door
Swap regular door for slab door $25/door
Add glass to Fiberglass slab door $70/door
Upgrade to Insulated Door $100/door
Vinyl Siding Upgrade to Fiberglass Door N/C
Paint Fiberglass Doors $35 per door
Get a Quote
Windows
Windows
Carriage Window  $225
Add Transom Window above standard window   $75
46″ x 46″ Insulated Window  $390
3′ x 6′ Concession Stand Window w/ Vinyl Shelf (insulated)  $550
Octagon Window (does not open)  $75
Row of Transom Window in Gable  $120
Additional 18″ x 27″ Window   $70
Upgrade 18″ x 27″ to 24″ x 27″ playhouse $20
Additional 24″ x 27″ Window $90
Upgrade to 24″ x 36″ Window $40
Additional 24″ x 36″ Window $110
Wood Carriage Style Window $225
Upgrade to 24″ x 36″ Insulated Window $145
Upgrade to 30″ x 36″ Insulated Window $175
Octagon $75
Credit for No Octagon (Dormer only) $40
Skylight (25″ x 49″) $750
Pair of Shutters $35
Pair of Shutters for 36″ Windows $45
Flower Box $35
Shutters
Louvered Shutters $35
Raised Panel Shutters $35
Z-Style Shutters $35
Flower Boxes
Wood Flower Box $35
Vinyl Flower Box $35
Get a Quote
Floors
Floors (Price per sq./ft.)
Treated Joists Only $2.25
Floor Joists 12″ on center $1.00
3/4″ T&G Smart Finish Wood Flooring $.50 per sq/ft
Double Bubble Insulated Floor $1.00
R-13 Fiberglass Insulation $2.00
Get a Quote
Roof
Roof
No Shingles Less 5%
Hip Roof Add $795
Dormer Package Add $595
Metal Roof
$400 more per transom/cape cod dormers
$800 more per 2-story shed dormers/house dormers		 Add $3.25 sq./ft
Rain Gutters & Downspouts
Standard Gutters & Downspouts $7 per linear foot
Leaf Guards $3 per foot
Special Order Colors (not white, hunter, or khaki) Additional $2 per linear foot
Get a Quote
Cupolas
Classic Vinyl Series
Copper Straight Copper Concave
18″ $400 $400
24″ $525 $525
Window Series – Vinyl
Copper Straight Copper Concave
18″ $445 $445
24″ $575 $575
Wood Series
Straight Aluminum Copper Straight Copper Concave
20″ $350 $400 $400
24″ $400 $450 $450
Vinyl Shed Series
Straight Aluminum Copper Straight Copper Concave
18″ $175 $210 $225
Wood Shed Series
Straight Aluminum
18″ $140
24″ $240
Classic Wood Series
Straight Standing Seam
18″ $310 $310
24″ $360 $360
Window Series – Wood
Straight Standing Seam
20″ $450 $450
24″ $500 $500
Get a Quote
Weathervanes
Black
Black Weathervane $75
Copper
548P Country Doctor $390
667P Flag $315
623P Horse $285
9628P Banner $315
955P Flying Eagle $375
9613P Duck $390
909P Sailboat $375
9642P Victorian Arrow $315
9557 Moose  $375
Painted
Painted Weathervane $100
Get a Quote
Ramps
Ramps – Extend 3′
4′ Ramp $90
5′ Ramp $100
6′ Ramp $110
8′ Ramp $140
9′ Ramp $160
Get a Quote
Miscellaneous
Miscellaneous
Quart of Paint $10.00
Gallon of Paint $30.00
Anchor Kit $80.00
Anchor Kit – Installed $160.00
Gutter and Downspouts $7 per ft
Leaf Guard for Gutters $3 per ft
Chicken Coop Package $375
Vinyl Stone Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Brick Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Outdoor Light $125
Designer Overhang Bracing $95
Trellis Overhang $325
Outdoor Outlet $125
Breaker Box $100
Garage Door Opener $450
Walls
No Paint Less $.75 per sq.ft.
8′ Walls – MAY BE BUILT ON SITE DEPENDING ON STYLE Add 10%
10′ Walls – MUST BE BUILT ON SITE Add 20%
Partitions – To Top Plate $20/ ft.
Partitions – To Ceiling $25/ ft.
Partitions – To Ceiling $20/ ft.
Interior
Loft – per sq/ft 4′ $2.00
Shelf – per linear ft. 16″ $4.00
Workbench – per linear ft. 24″ $6.00
Vents
Standard Wood Gable Vent $30 ea.
Ridge Vent $7 per ft
Arch Gable Vents $40 ea.
Vented Soffit $6 per ft
Vinyl Garden Vent $40
Standard Vinyl Vent $30
Get a Quote
Additional Options
Additional Options
Insulated Floor $1.00 sq/ft
2 x 6 Walls $0.75 sq/ft
Extra 24×36 Window w/Shutters $145 each
Shed Dormers
(Includes 1 Window per 12′ of Dormer)		 $110 ft on one side
$100 ft if on both sides (Prices based on 16′ Long dormer and longer)
4′ Single Slope Dormer  (Add $940 more for A-frame Style) (Includes 1-24×36 window) $1,495 each
6′ Single Slope Dormer  (Add $940 more for A-frame Style) (Includes 1-24×36 window) $1,695 each
6′ Wood Hinged Overhang $75 ft
8′ Wood Hinged Overhang $85 ft
6′ Vinyl Hinged Overhang $95 ft
8′ Vinyl Hinged Overhang $105 ft
Arch Top Garage Door Front $275 Each
Transom Above Windows or Doors (Non-Insulated) $75 Each
Clipped Hip Dormers $200 per Dormer
Get a Quote
View Options

Paint / Shingle Colors for Gambrel 2-Story Single Car Garage

Paint Colors

Beige
Belmont Blue
Black
Chestnut Brown
Dark Brown
Dark Gray
Hunter Green
Khaki
Barn Red
Pequea Green
Ronks Gray
Sandstone
White

Vinyl Colors

Antique Ivory
Classic Linen
Slate Gray
Khaki
Heritage Gray
Sage
Sandstone
Slate Blue
White

Shingle Colors

Dual Black
Earthtone Cedar
Dual Brown
Weather Wood
Dual Gray
Charcoal Gray
National Blue
Vintage Green

Metal Roofing Colors

Bright White
Polar White
Light Stone
Ivory
Clay
Tan
Ash Gray
Pewter Gray
Charcoal
Burnished Slate
Brown
Burgundy
Rural Red
Bright Red
Evergreen
Ivy Green
Copper Metallic
Gallery Blue
Ocean Blue
Black
Rural Red (Textured)
Burgundy (Textured)
Evergreen (Textured)
Burnished Slate (Textured)
Charcoal (Textured)
Black (Textured)
Get a Quote

Get a Quote on a Gambrel 2-Story Single Car Garage

    Please Note: We do our best to respond to all inquiries in a timely manner. Due to the recent increase in the volume of inquiries, we will be responding within 48hrs.

    *If we can not bring your building in modular and need to build on site there will be an additional charge.
