10×16 Garden A-Frame with additional single door and transom windows in doors

Garden A-Frame

Garden Shed Highlights

Steeper Pitch Roof

Larger Overhangs

Decorative Miratec Trim for Corners, Windows and Faceboard

10 Year Warranty

Garden A-Frame Shed Features

  • 4 X 4 Pressure Treated Skid form the foundation
  • Floor joists are standard 2 X 4’s 16″ on center
  • 5/8″ SmartFinish Wood Flooring
  • Walls are Standard with 2 X 4s 16″ OC
  • 6’7″ High Walls
  • ½” LP Smartside Siding Finishes the Exterior OR
  • Optional (Cedar Creek Vinyl Siding w/ ½” Wood Sheating) OR
  • Optional (Painted Smart Side LP Lap Siding)
  • Set of Double Doors with Aluminum Diamond Plate Guard
  • Includes 2- 24” X 27” Windows w/Trim
  • 2- Pair Shutters
  • Rafters are constructed of 2 X 4s 16″ OC
  • 7- Pitch Roof  (6 Pitch on 14′ Wide)
  • 7” Gable Overhangs
  • Arch Gable Vents
  • Roof consists of ½” sheeting
  • Tar Paper
  • 30 year Architectural Shingles
  • Standard Double Door widths:
    • 8 wide building = 4′ Wide x 6′ High Doors
    • 10 wide building = 5′ Wide x 6′ High Doors
    • 12 and 14 wide buildings = 6′ Wide x 6′ High Doors

Make your garden shed a potting shed!

Our potting sheds come with all the standard features of our garden sheds, Along with additional features to make nurturing tender seedlings or potting flowers easy and convenient!

Potting Sheds Include:

  • Garden Shed Options
  • 4-24” x 27” Windows – Along back wall
  • 1-25” x 49” Vertical Sky Light
  • Workbench

Garden A-Frame Shed Examples

10x16-Garden-Shed-with-Optional-36-Side-Door-Transomes-in-Doors-1 Click to Enlarge
12' x 20' Garden Shed Standing Seam Click to Enlarge
12x20 Garden Shed Cedar Click to Enlarge

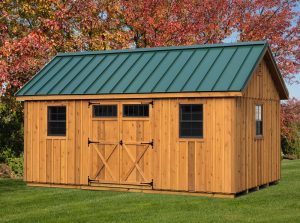

12x20 Garden Shed Click to Enlarge

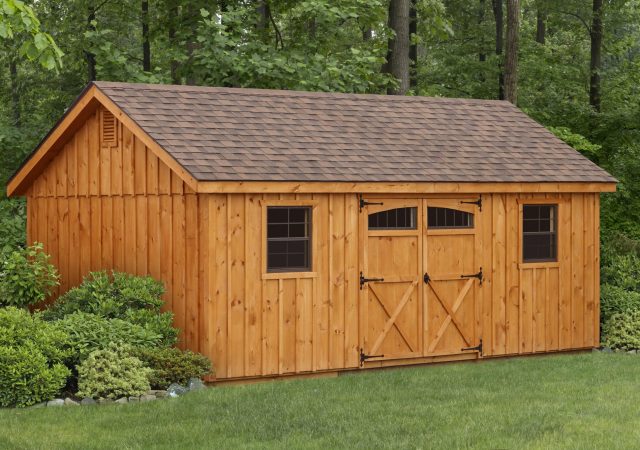

12x20 Pine Garden A-frame Click to Enlarge
Garden 012 Click to Enlarge

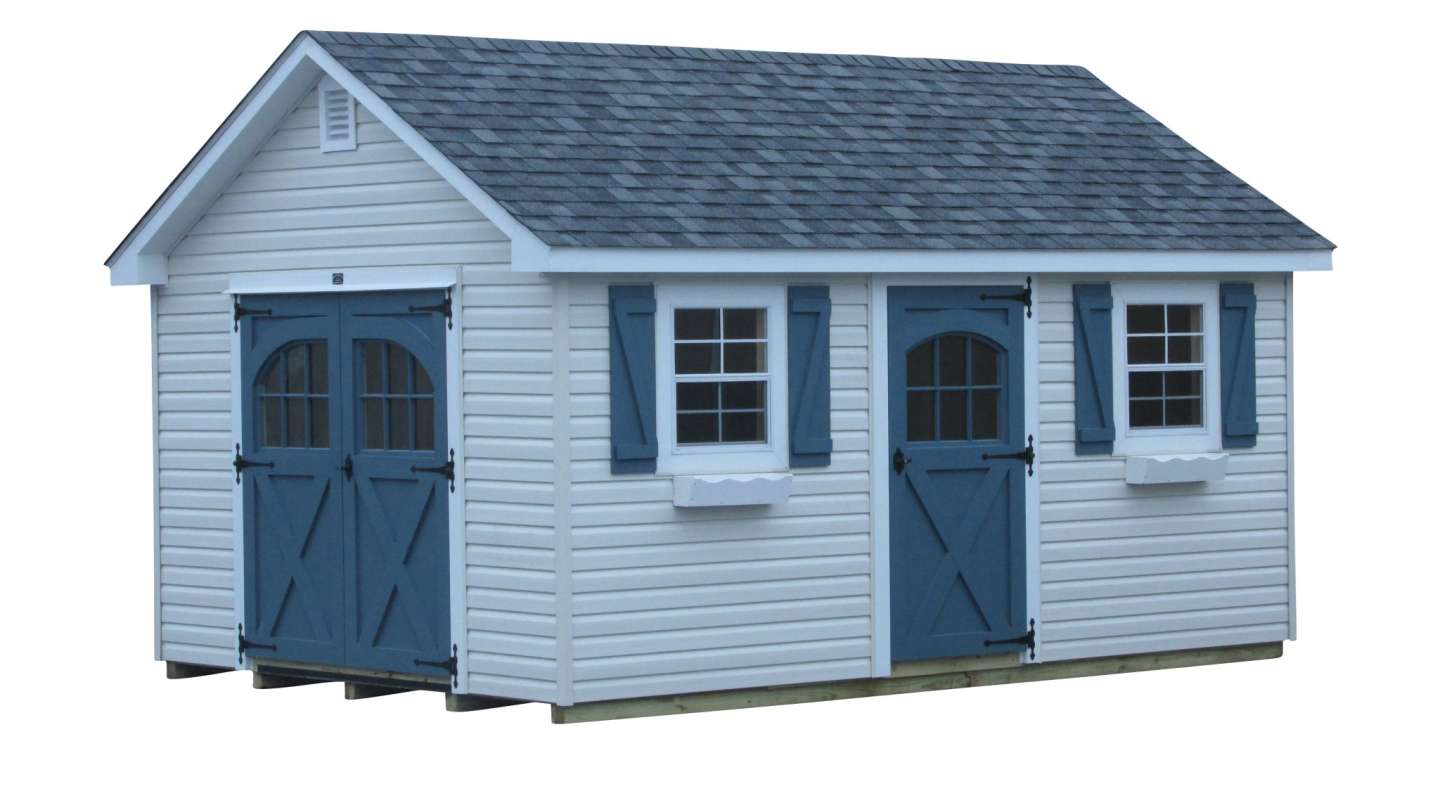

IMG_2623 Click to Enlarge

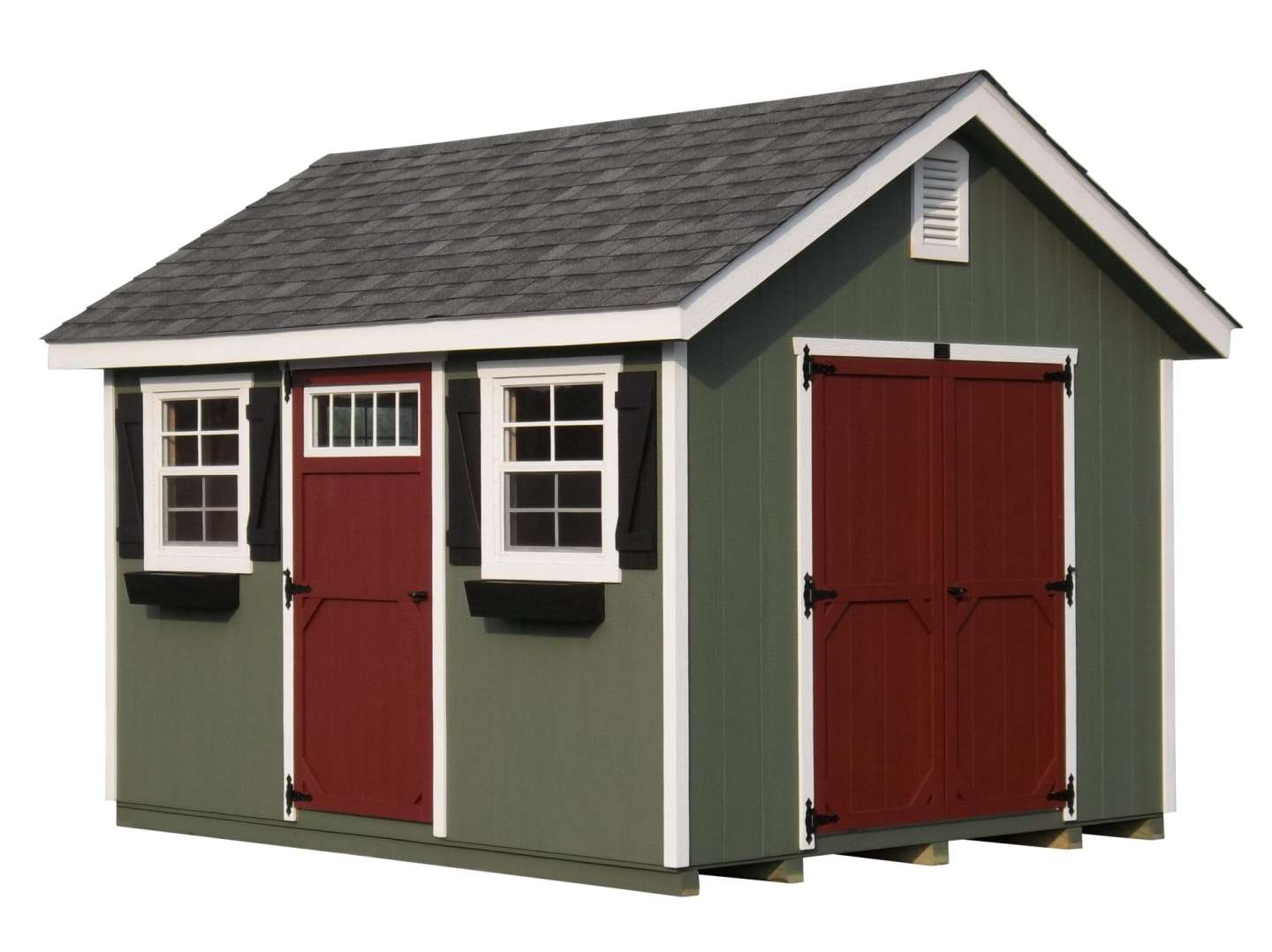

10x12 Garden Shed Click to Enlarge
IMG_4193 Click to Enlarge
138A3343 (2) Click to Enlarge

View Additional Photos & Videos

Gallery

GARDEN A-FRAME PRICES

Prices shown are meant to be a guide and don’t include delivery or custom features. Once you find your size, click “Get A Quote” and fill out the form to submit your ideas to a project manager, who will reach out to you with a full quote!

SizeWoodVinyl & LP Board & BattenHardie Plank & Pine B&B
6 X 8 $    2,610 $   3,225 $     3,495
6 X 10 $    2,910 $   3,595 $     3,895
8 X 8 $    2,940 $   3,635 $     3,935
8 X 10 $    3,215 $   3,970 $     4,300
8 X 12 $    3,510 $   4,340 $     4,700
8 X 14 $    3,790 $   4,685 $     5,075
8 X 16 $    4,075 $   5,040 $     5,455
10 X 10 $    3,910 $   4,835 $     5,235
10 X 12 $    4,355 $   5,385 $     5,830
10 X 14 $    4,800 $   5,935 $     6,425
10 X 16 $    5,200 $   6,430 $     6,960
10 X 18 $    5,660 $   6,995 $     7,575
10 X 20 $    6,090 $   7,530 $     8,150
10 X 22 $    6,540 $   8,085 $     8,755
10 X 24 $    6,980 $   8,625 $     9,340
10 x 26 $    7,410 $   9,160 $     9,920
10 x 28 $    7,860 $   9,720 $   10,525
10 x 30 $    8,330 $  10,300 $   11,150
12 X 12 $    4,795 $   5,925 $     6,420
12 X 14 $    5,265 $   6,510 $     7,045
12 X 16 $    5,755 $   7,110 $     7,700
12 X 18 $    6,235 $   7,710 $     8,345
12 X 20 $    6,720 $   8,305 $     8,995
12 X 22 $    7,205 $   8,910 $     9,650
12 X 24 $    7,685 $   9,500 $   10,285
12 X 26 $    8,165 $  10,095 $   10,930
12 X 28 $    8,640 $  10,685 $   11,570
12 x 30 $    9,130 $  11,290 $   12,225
12 X 32 $    9,625 $  11,900 $   12,885
12 X 34 $  10,105 $  12,490 $   13,525
12 X 36 $  10,610 $  13,115 $   14,205
12 X 40 $  11,550 $  14,280 $   15,460
14 X 20 $    8,340 $  10,305 $   11,160
14 X 24 $    9,615 $  11,885 $   12,870
14 X 28 $  10,765 $  13,305 $   14,410
14 X 32 $  11,915 $  14,725 $   15,945
14 X 36 $  13,050 $  16,130 $   17,470
14 X 40 $  14,200 $  17,555 $   19,005
Get a Quote

Garden A-Frame Shed Options

Doors
Wood Doors
Double Wood Doors $250
Double Colonial Wood Door $350
Double Wood Doors w/ Transom Windows $400
Double Colonial Wood Doors w/ Transom Windows $500
Carriage Wood Doors $595
Single Wood Door $150
Single Arched Wood Door $250
Slab Doors
Single Fiberglass Slab Door $175
Slab Door 4-Lite Glass $245
Slab Door 6-Lite Glass $245
Slab Door 9-Lite Glass $245
Slab Door 11-Lite Glass $245
Slab Door 15-Lite Glass $295
Double Fiberglass Slab Doors $350
House Doors
Solid House Door $375
House Door 9-Lite $445
House Door 11-Lite $445
House Door 15-Lite $520
Double Solid House Doors $650
Double House Doors 9-Lite $790
Double House Doors 11-Lite $790
Double House Doors 15-Lite $940
Door Hinges
Garden Hinge Single $8
Double $15
Standard Hinge Single $6
Double $12
Strap Hinge Single $18
Double $35
Door Handles
Standard Garage Door Latch
Garden Shed Latch
Horse Shoe Latch
Standard Latch
Additional Door Options
12″ Wider Doors$40
24″ Wider Doors$60
Higher Doors7′$50
6′ Pine Carriage Doors w/ Glass$575
Extra Dutch Door36″

42″

48″

$300

$325

$350

Upgrade Double Dutch Door$350
Extra Double Dutch Door$600
Upgrade to 8′ x 7′ Double Doors$100
Extra 8′ x 7′ Double Doors$350
Add 5′ or 6′ Double Arched Wood Doors$400
Upgrade to 5′ or 6′ Double Arched Wood Doors$100
Add 36″ Single Arched Wood Door$200
Add 36″ Single Arched Wood Door to Dormer$50
Upgrade to Colonial Wood Door$50/door
Add Transom Windows to Wood Door$75/door
Add Arched Transom Windows to Wood Door$125/door
Swap regular door for slab door$25/door
Add glass to Fiberglass slab door$70/door
Vinyl Siding Upgrade to Fiberglass DoorN/C
Paint Fiberglass Doors$35 per door
Get a Quote
Windows
Windows
Carriage Window $225
Add Transom Window above standard window  $75
46″ x 46″ Insulated Window $390
3′ x 6′ Concession Stand Window w/ Vinyl Shelf (insulated) $550
Octagon Window (does not open) $75
Row of Transom Window in Gable $120
Additional 18″ x 27″ Window  $70
Upgrade 18″ x 27″ to 24″ x 27″ playhouse$20
Additional 24″ x 27″ Window$90
Upgrade to 24″ x 36″ Window$40
Additional 24″ x 36″ Window$110
Wood Carriage Style Window$225
Upgrade to 24″ x 36″ Insulated Window$145
Upgrade to 30″ x 36″ Insulated Window$175
Octagon$75
Credit for No Octagon (Dormer only)$40
Skylight (25″ x 49″)$750
Pair of Shutters$35
Pair of Shutters for 36″ Windows$45
Flower Box$35
Shutters
Louvered Shutters $35
Raised Panel Shutters $35
Z-Style Shutters $35
Flower Boxes
Wood Flower Box $35
Vinyl Flower Box $35
Get a Quote
Floors
Floors (Price per sq./ft.)
Pressure Treated Joists Only$1.00
Pressure Treated Joists & Plywood$2.25
Floor Joists 12″ on center$.35
3/4″ T&G Smart Finish Wood Flooring$.50
Double Bubble Insulated Floor$1.00
R-13 Fiberglass Insulation$2.00
Get a Quote
Roof
Roof
No ShinglesLess 4%
Hip RoofAdd $795
Dormer PackageAdd $595
Metal Roof
$550 more per transom/cape cod dormers
$950 more per 2-story shed dormers/house dormers		Add $3.75
Rain Gutters & Downspouts
Standard Gutters & Downspouts$7 per linear foot
Leaf Guards$3 per foot
Special Order Colors (not white, hunter, or khaki)Additional $2 per linear foot
Get a Quote
Cupolas
Classic Vinyl Series
Copper StraightCopper Concave
18″$400$400
24″$525$525
Window Series – Vinyl
Copper StraightCopper Concave
18″$445$445
24″$575$575
Wood Series
Straight AluminumCopper StraightCopper Concave
20″$350$400$400
24″$400$450$450
Vinyl Shed Series
Straight AluminumCopper StraightCopper Concave
18″$225$270$350
Wood Shed Series
Straight Aluminum
18″$190
Classic Wood Series
StraightStanding Seam
18″$310$310
24″$360$360
Window Series – Wood
StraightStanding Seam
20″$450$450
24″$500$500
Get a Quote
Weathervanes
Black
Black Weathervane $75
Copper
548P Country Doctor $390
667P Flag $315
623P Horse $285
9628P Banner $315
955P Flying Eagle $375
9613P Duck $390
909P Sailboat $375
9642P Victorian Arrow $315
9557 Moose  $375
Painted
Painted Weathervane $100
Get a Quote
Ramps
Ramps – Extend 3′
4′ Ramp$90
5′ Ramp$100
6′ Ramp$110
8′ Ramp$140
9′ Ramp$160
Get a Quote
Miscellaneous
Miscellaneous
Quart of Paint$10.00
Gallon of Paint$30.00
Anchor Kit$80.00
Anchor Kit – Installed$160.00
Gutter and Downspouts$7 per ft
Leaf Guard for Gutters$3 per ft
Chicken Coop Package$375
Vinyl Stone Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Brick Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Outdoor Light $125
Designer Overhang Bracing $95
Trellis Overhang $325
Outdoor Outlet $125
Breaker Box $100
Garage Door Opener $450
Walls
No PaintLess $.75 per sq.ft.
8′ Walls – MAY BE BUILT ON SITE DEPENDING ON STYLEAdd 10%
10′ Walls – MUST BE BUILT ON SITEAdd 20%
Partitions – To Top Plate$20/ ft.
Partitions – To Ceiling$25/ ft.
Partitions – To Ceiling$20/ ft.
Interior
Loft – per sq/ft 4′$3.00
Shelf – per linear ft.16″$5.00
Workbench – per linear ft. 24″$7.00
Vents
Standard Wood Gable Vent $30 ea.
Ridge Vent$7 per ft
Arch Gable Vents$40 ea.
Vented Soffit$6 per ft
Vinyl Garden Vent $40
Standard Vinyl Vent $30
Get a Quote
View Options

Paint / Shingle Colors for Garden A-Frame Shed

Paint Colors

Beige
Belmont Blue
Black
Chestnut Brown
Dark Brown
Dark Gray
Hunter Green
Khaki
Barn Red
Pequea Green
Ronks Gray
Sandstone
White

Vinyl Colors

Antique Ivory
Classic Linen
Slate Gray
Khaki
Heritage Gray
Sage
Sandstone
Slate Blue
White

Shingle Colors

Dual Black

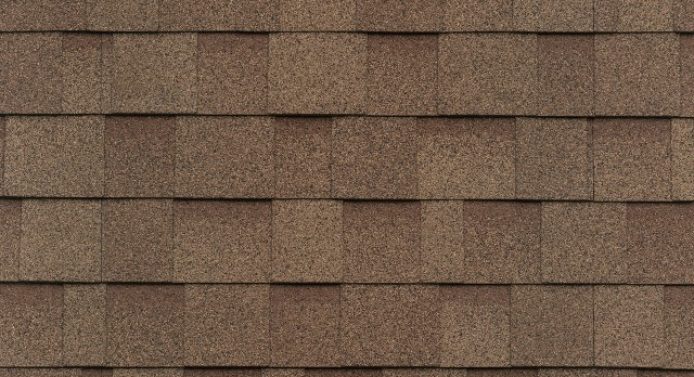

Earthtone Cedar

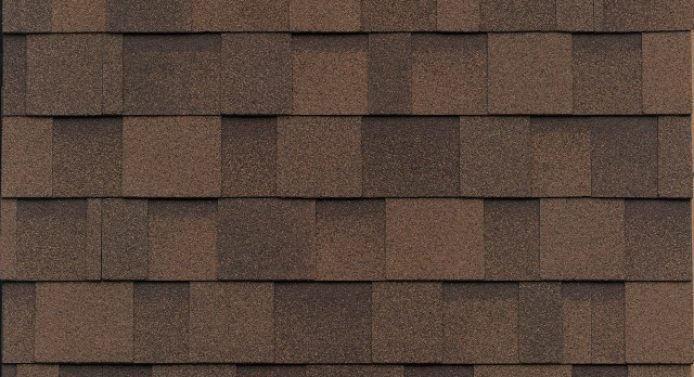

Dual Brown
Weather Wood

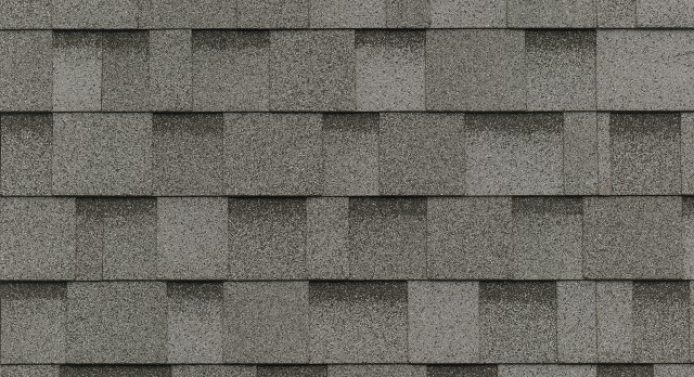

Dual Gray

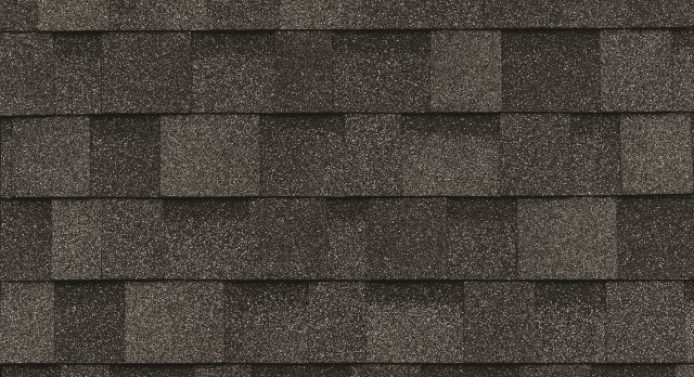

Charcoal Gray
National Blue
Vintage Green

Metal Roofing Colors

Bright White
Polar White
Light Stone
Ivory
Clay
Tan
Ash Gray
Pewter Gray

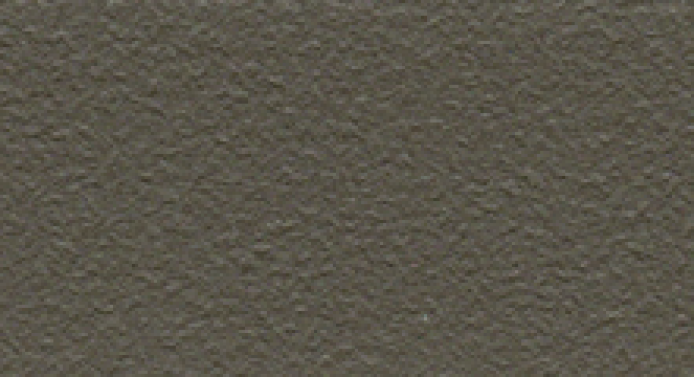

Charcoal

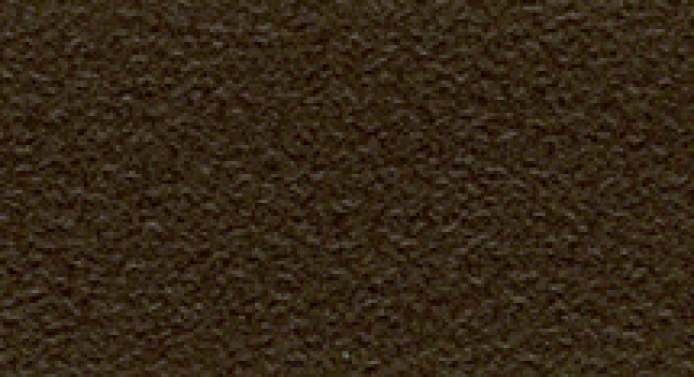

Burnished Slate
Brown
Burgundy

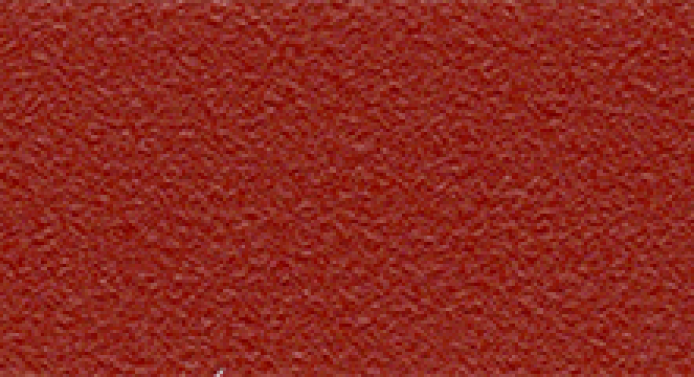

Rural Red
Bright Red
Evergreen
Ivy Green
Copper Metallic
Gallery Blue
Ocean Blue
Black
Rural Red (Textured)
Burgundy (Textured)
Evergreen (Textured)
Burnished Slate (Textured)
Charcoal (Textured)
Black (Textured)
Get a Quote

Get a Quote on a Garden A-Frame Shed

    Please Note: We do our best to respond to all inquiries in a timely manner. Due to the recent increase in the volume of inquiries, we will be responding within 48hrs.

    *If we can not bring your building in modular and need to build on site there will be an additional charge.
