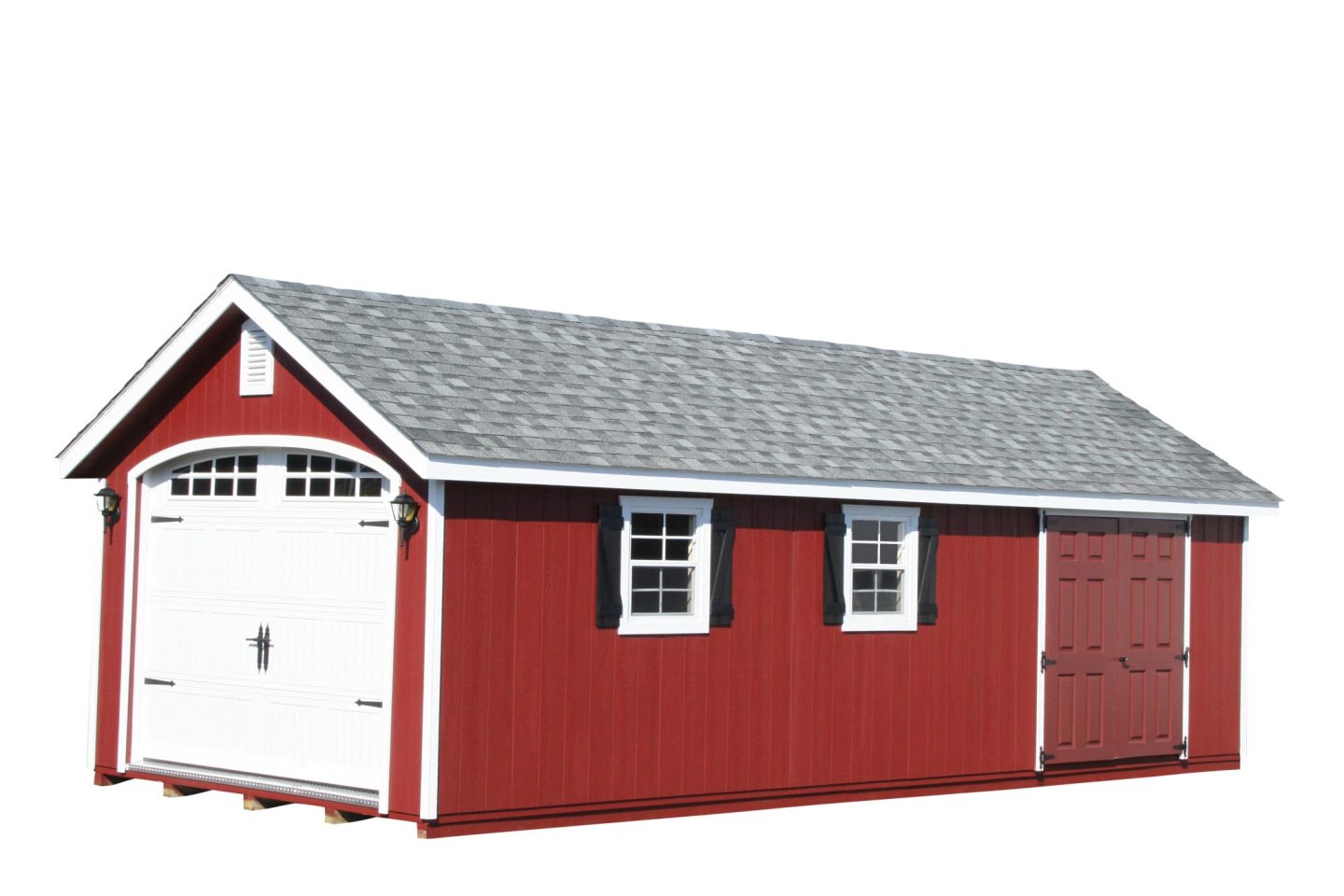

12×24 garden a-frame garage with optional carriage style garage door and transom window in single door

Garden A-Frame

Like our other prefab single car garages for sale, the one car garage comes with one overhead garage door, reinforced flooring, 2 – windows with shutters, and a single man door on the side, but with two added garden gable vents. We also offer other garage prefab options with wooden, prefab single car garage designs, such as flower boxes, workbenches, shelves, lofts, or ramps!

Garden A-Frame Features

  • 4 x 4 Pressure Treated Skids form the foundation
  • Floor joists are standard 2 x 4’s 8″ on center
  • 3/4″ T&G SmartFinish Wood Flooring
  • Walls are Standard with 2 x 4s 16″ OC
  • (6’7″ High Walls)
  • ½” LP Smartside Siding Finishes the Exterior OR
  • Optional (Cedar Creek Vinyl Siding w/ ½” Wood Sheating) OR
  • Optional (Hardi-Plank Lap Siding)
  • 1-9′ x 7′ Solid Steel Garage Door w/ Aluminum Diamond Plate Guard
  • (Note: 8′ x 6’6″ Garage Door in 10′ Wide Buildings)
  • 36″ Single Door with Aluminum Floorguard
  • Includes 2- 24 x 27″ Windows w/Screens
  • Trim around Windows
  • 2- Pair Shutters
  • Rafters are constructed of 2 x 4s 16″ OC
  • 7- Pitch Roof (6- Pitch Roof on 14′ Wide Buildings)
  • 7″ Gable Overhangs
  • Arch Gable Vents
  • Roof consists of ½” sheeting
  • Tar Paper
  • 30 year Architectural Shingles

Garden A-Frame Prices

Prices shown are meant to be a guide and don’t include delivery or custom features. Once you find your size, click “Get A Quote” and fill out the form to submit your ideas to a project manager, who will reach out to you with a full quote!

Sizes Wood Vinyl & LP Board & Batten Hardie Plank & Pine Board & Batten
10 x 20  $    6,325  $        7,645  $   8,215
10 x 22  $    6,745  $        8,165  $   8,780
10 x 24  $    7,155  $        8,670  $   9,325
10 x 26  $    7,565  $        9,170  $   9,870
10 x 28  $    7,990  $        9,695  $ 10,430
10 x 30  $    8,430  $      10,235  $ 11,020
12 x 12  $    5,105  $        6,145  $   6,595
12 x 14  $    5,550  $        6,695  $   7,190
12 x 16  $    6,005  $        7,255  $   7,795
12 x 18  $    6,465  $        7,820  $   8,405
12 x 20  $    6,920  $        8,375  $   9,010
12 x 22  $    7,375  $        8,935  $   9,615
12 x 24  $    7,830  $        9,495  $ 10,215
12 x 26  $    8,285  $      10,055  $ 10,820
12 x 28  $    8,735  $      10,610  $ 11,420
12 x 30  $    9,190  $      11,170  $ 12,025
12 x 32  $    9,660  $      11,745  $ 12,650
12 x 34  $  10,110  $      12,300  $ 13,250
12 x 36  $  10,585  $      12,885  $ 13,880
12 x 40  $  11,475  $      13,975  $ 15,060
14 x 20  $    8,425  $      10,235  $ 11,020
14 x 24  $    9,625  $      11,710  $ 12,610
14 x 28  $  10,705  $      13,035  $ 14,050
14 x 32  $  11,790  $      14,370  $ 15,490
14 x 36  $  12,855  $      15,680  $ 16,910
14 x 40  $  13,940  $      17,015  $ 18,350



Garden A-Frame Options

Doors
Wood Doors
Double Wood Doors $250
Double Colonial Wood Door  $350
Double Wood Doors w/ Transom Windows  $400
Double Colonial Wood Doors w/ Transom Windows  $500
Carriage Wood Doors  $595
Single Wood Door  $150
Single Arched Wood Door  $250
Slab Doors
Single Fiberglass Slab Door  $175
Slab Door 4-Lite Glass  $245
Slab Door 6-Lite Glass  $245
Slab Door 9-Lite Glass  $245
Slab Door 11-Lite Glass  $245
Slab Door 15-Lite Glass  $295
Double Fiberglass Slab Doors  $350
Double Colonial Slab Doors  $390
House Doors
Solid House Door  $375
House Door 9-Lite  $445
House Door 11-Lite  $445
House Door 15-Lite  $520
Double Solid House Doors  $650
Double House Doors 9-Lite  $790
Double House Doors 11-Lite  $790
Double House Doors 15-Lite  $940
Garage Doors
9×7 Carriage Garage Door  $340
Sunburst Garage Door  $150
Add windows to overhead door $100
Door Hinges
Garden Hinge Single $8
Double $15
Standard Hinge Single $6
Double $12
Strap Hinge Single $18
Double $35
Door Handles
Standard Garage Door Latch
Garden Shed Latch
Carriage Garage Door Latch
Horse Shoe Latch
Standard Latch
Additional Door Options
12″ Wider Doors $40
24″ Wider Doors $60
Higher Doors 7′ $50
6′ Pine Carriage Doors w/ Glass $575
Extra Dutch Door 36″

42″

48″

$300

$325

$350

Upgrade Double Dutch Door $350
Extra Double Dutch Door $600
8′ x 7′ Double Doors $100
Extra 8′ x 7′ Double Doors $350
8′ x 6′ 6″ Overhead Door $510
8′ x 6′ 6″ Insulated Overhead Door $610
9′ x 7′ Overhead Door $550
9′ x 7′ Insulated Overhead Door $650
Upgrade to Carriage Overhead Door $240
Upgrade to Insulated Carriage Overhead Door $340
Add 5′ or 6′ Double Arched Wood Doors $400
Upgrade to 5′ or 6′ Double Arched Wood Doors $100
Add 36″ Single Arched Wood Door $200
Add 36″ Single Arched Wood Door to Dormer $50
Upgrade to Colonial Wood Door $50/door
Add Transom Windows to Wood Door $75/door
Add Arched Transom Windows to Wood Door $125/door
Swap regular door for slab door $25/door
Add glass to Fiberglass slab door $70/door
Upgrade to Insulated Door $100/door
Vinyl Siding Upgrade to Fiberglass Door N/C
Paint Fiberglass Doors $35 per door
Windows
Windows
Carriage Window  $225
Add Transom Window above standard window   $75
46″ x 46″ Insulated Window  $390
3′ x 6′ Concession Stand Window w/ Vinyl Shelf (insulated)  $550
Octagon Window (does not open)  $75
Row of Transom Window in Gable  $120
Additional 18″ x 27″ Window   $70
Upgrade 18″ x 27″ to 24″ x 27″ playhouse $20
Additional 24″ x 27″ Window $90
Upgrade to 24″ x 36″ Window $40
Additional 24″ x 36″ Window $110
Wood Carriage Style Window $225
Upgrade to 24″ x 36″ Insulated Window $145
Upgrade to 30″ x 36″ Insulated Window $175
Octagon $75
Credit for No Octagon (Dormer only) $40
Skylight (25″ x 49″) $750
Pair of Shutters $35
Pair of Shutters for 36″ Windows $45
Flower Box $35
Shutters
Louvered Shutters $35
Raised Panel Shutters $35
Z-Style Shutters $35
Flower Boxes
Wood Flower Box $35
Vinyl Flower Box $35
Floors
Floors (Price per sq./ft.)
Treated Joists Only $2.25
Floor Joists 12″ on center $1.00
3/4″ T&G Smart Finish Wood Flooring $.50 per sq/ft
Double Bubble Insulated Floor $1.00
R-13 Fiberglass Insulation $2.00
Roof
Roof
No Shingles Less 5%
Hip Roof Add $795
Dormer Package Add $595
Metal Roof
$400 more per transom/cape cod dormers
$800 more per 2-story shed dormers/house dormers
Add $2.75 sq/ft
Rain Gutters & Downspouts
Standard Gutters & Downspouts $7 per linear foot
Leaf Guards $3 per foot
Special Order Colors (not white, hunter, or khaki) Additional $2 per linear foot
Cupolas
Classic Vinyl Series
Copper Straight Copper Concave
18″ $400 $400
24″ $525 $525
Window Series – Vinyl
Copper Straight Copper Concave
18″ $445 $445
24″ $575 $575
Wood Series
Straight Aluminum Copper Straight Copper Concave
20″ $350 $400 $400
24″ $400 $450 $450
Vinyl Shed Series
Straight Aluminum Copper Straight Copper Concave
18″ $175 $210 $225
Wood Shed Series
Straight Aluminum
18″ $140
24″ $240
Classic Wood Series
Straight Standing Seam
18″ $310 $310
24″ $360 $360
Window Series – Wood
Straight Standing Seam
20″ $450 $450
24″ $500 $500
Weathervanes
Black
Black Weathervane $75
Copper
548P Country Doctor $390
667P Flag $315
623P Horse $285
9628P Banner $315
955P Flying Eagle $375
9613P Duck $390
909P Sailboat $375
9642P Victorian Arrow $315
9557 Moose  $375
Painted
Painted Weathervane $100
Ramps
Ramps – Extend 3′
4′ Ramp $90
5′ Ramp $100
6′ Ramp $110
8′ Ramp $140
9′ Ramp $160
Miscellaneous
Miscellaneous
Quart of Paint $10.00
Gallon of Paint $30.00
Anchor Kit $80.00
Anchor Kit – Installed $160.00
Gutter and Downspouts $7 per ft
Leaf Guard for Gutters $3 per ft
Chicken Coop Package $375
Vinyl Stone Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Brick Veneer $15 / sq. ft. short spans
$13 / sq. ft. short spans
Outdoor Light $125
Designer Overhang Bracing $95
Trellis Overhang $325
Outdoor Outlet $125
Breaker Box $100
Walls
No Paint Less $.75 per sq.ft.
8′ Walls – MAY BE BUILT ON SITE DEPENDING ON STYLE Add 10%
10′ Walls – MUST BE BUILT ON SITE Add 20%
Partitions – To Top Plate $20/ ft.
Partitions – To Ceiling $25/ ft.
Partitions – To Ceiling $20/ ft.
Interior
Loft – per sq/ft 4′ $2.00
Shelf – per linear ft. 16″ $4.00
Workbench – per linear ft. 24″ $6.00
Vents
Standard Wood Gable Vent $30 ea.
Ridge Vent $7 per ft
Arch Gable Vents $40 ea.
Vented Soffit $6 per ft
Vinyl Garden Vent $40
Standard Vinyl Vent $30

Paint / Shingle Colors for Garden A-Frame

Paint Colors

Beige
Belmont Blue
Black
Chestnut Brown
Dark Brown
Dark Gray
Hunter Green
Khaki
Barn Red
Pequea Green
Ronks Gray
Sandstone
White

Vinyl Colors

Antique Ivory
Classic Linen
Slate Gray
Khaki
Heritage Gray
Sage
Sandstone
Slate Blue
White

Shingle Colors

Dual Black
Earthtone Cedar
Dual Brown
Weather Wood
Dual Gray
Charcoal Gray
National Blue
Vintage Green

Metal Roofing Colors

Bright White
Polar White
Light Stone
Ivory
Clay
Tan
Ash Gray
Pewter Gray
Charcoal
Burnished Slate
Brown
Burgundy
Rural Red
Bright Red
Evergreen
Ivy Green
Copper Metallic
Gallery Blue
Ocean Blue
Black
Rural Red (Textured)
Burgundy (Textured)
Evergreen (Textured)
Burnished Slate (Textured)
Charcoal (Textured)
Black (Textured)

Get a Quote on a Garden A-Frame

    Please Note: We do our best to respond to all inquiries in a timely manner. Due to the recent increase in the volume of inquiries, we will be responding within 48hrs.

    *If we can not bring your building in modular and need to build on site there will be an additional charge.
