10×16 Standard Dormer
The Dormer garden shed is simply an enhanced A-frame shed with a steeper pitch roof. It includes the same standard features as the A-frame. Upgrading with the dormer package adds an attractive, distinguished facade. Dormer package included dormer roof, dormer window and fiberglass raised panel door with arched glass.
Get a QuoteStandard Dormer Highlights
Steeper Roof Pitch
Dormer w/ Continuous Front Wall
Standard Dormer Shed Features
- 4 X 4 Pressure Treated Skid form the foundation
- Floor joists are standard 2 X 4’s 16“ on center
- 5/8“ SmartFinish Wood Flooring
- Walls are Standard with 2 X 4s 16“ OC
- 6’7“ High Walls
- ½” LP Smartside Siding Finishes the Exterior OR
- Optional (Cedar Creek Vinyl Siding w/ ½” Wood Sheating) OR
- Optional (Hardi-Plank Lap Siding)
- Choice of either a
- Set of Double Doors with Arch Glass Or
- Set of Solid Doors and Single Door with Glass
- Includes 2- 18 X 27‘ Window
- Rafters are constructed of 2 X 4s 16‘ OC
- Open Dormer Style Roof w/ Octagon Window
- Roof consists of ½” sheeting
- Tar Paper
- 30 year Architectural Shingles
- Standard Double Door widths:
- 8 wide building = 4‘ Wide x 6‘ High Doors
- 10 wide building = 5‘ Wide x 6‘ High Doors
- 12 and 14 wide buildings = 6‘ Wide x 6‘ High Doors

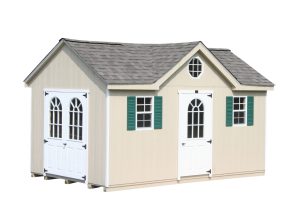

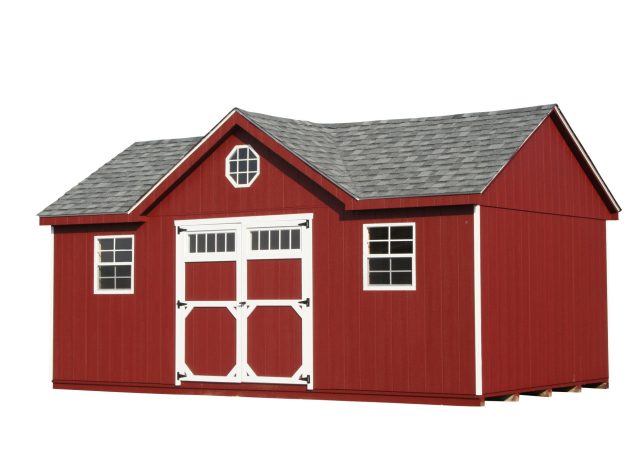

Standard Dormer Shed Examples
View Additional Photos & Videos
GalleryStandard Dormer Shed Prices
Prices shown are meant to be a guide and don’t include delivery or custom features. Once you find your size, click “Get A Quote” and fill out the form to submit your ideas to a project manager, who will reach out to you with a full quote!
| Size | Smartside | Vinyl – LP Board & Batten | LP Lap – Pine B&B |
| 6 X 8 | $3,015 | $3,685 | $4,250 |
| 6 X 10 | $3,270 | $4,015 | $4,630 |
| 8 X 8 | $3,295 | $4,045 | $4,670 |
| 8 X 10 | $3,525 | $4,345 | $5,020 |
| 8 X 12 | $3,780 | $4,675 | $5,400 |
| 8 X 14 | $4,020 | $4,985 | $5,760 |
| 8 X 16 | $4,260 | $5,295 | $6,120 |
| 10 X 10 | $4,120 | $5,115 | $5,910 |
| 10 X 12 | $4,500 | $5,615 | $6,480 |
| 10 X 14 | $4,875 | $6,095 | $7,040 |
| 10 X 16 | $5,220 | $6,545 | $7,560 |
| 10 X 18 | $5,605 | $7,045 | $8,140 |
| 10 X 20 | $5,975 | $7,525 | $8,690 |
| 10 X 22 | $6,355 | $8,025 | $9,260 |
| 10 X 24 | $6,730 | $8,515 | $9,820 |
| 10 x 26 | $7,095 | $8,985 | $10,370 |
| 10 x 28 | $7,480 | $9,485 | $10,950 |
| 10 x 30 | $7,880 | $10,005 | $11,550 |
| 12 X 12 | $4,870 | $6,095 | $7,030 |
| 12 X 14 | $5,270 | $6,615 | $7,630 |
| 12 X 16 | $5,685 | $7,155 | $8,260 |
| 12 X 18 | $6,100 | $7,695 | $8,880 |
| 12 X 20 | $6,510 | $8,225 | $9,490 |
| 12 X 22 | $6,925 | $8,765 | $10,120 |
| 12 X 24 | $7,330 | $9,295 | $10,720 |
| 12 X 26 | $7,740 | $9,825 | $11,340 |
| 12 X 28 | $8,145 | $10,355 | $11,950 |
| 12 x 30 | $8,560 | $10,885 | $12,570 |
| 12 X 32 | $8,980 | $11,435 | $13,200 |
| 12 X 34 | $9,385 | $11,965 | $13,810 |
| 12 X 36 | $9,820 | $12,525 | $14,460 |
| 12 X 40 | $10,620 | $13,565 | $15,660 |
| 14 X 20 | $7,885 | $10,015 | $11,560 |
| 14 X 24 | $8,970 | $11,425 | $13,180 |
| 14 X 28 | $9,950 | $12,695 | $14,650 |
| 14 X 32 | $10,925 | $13,965 | $16,120 |
| 14 X 36 | $11,890 | $15,215 | $17,560 |
| 14 X 40 | $12,870 | $16,495 | $19,030 |
Standard Dormer Options
Colors
Paint Colors
Vinyl Colors

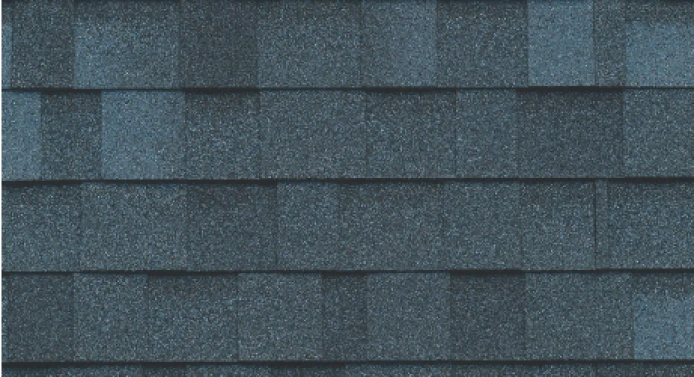

Shingle Colors
Dual Black
Earthtone Cedar
Dual Brown
Weather Wood
Dual Gray
Charcoal Gray
Atlantic Blue
Emerald Green
Monaco Red
Metal Roofing Colors
Copper Metallic
Rural Red (Textured)
Burgundy (Textured)
Evergreen (Textured)
Burnished Slate (Textured)
Charcoal (Textured)
Black (Textured)
