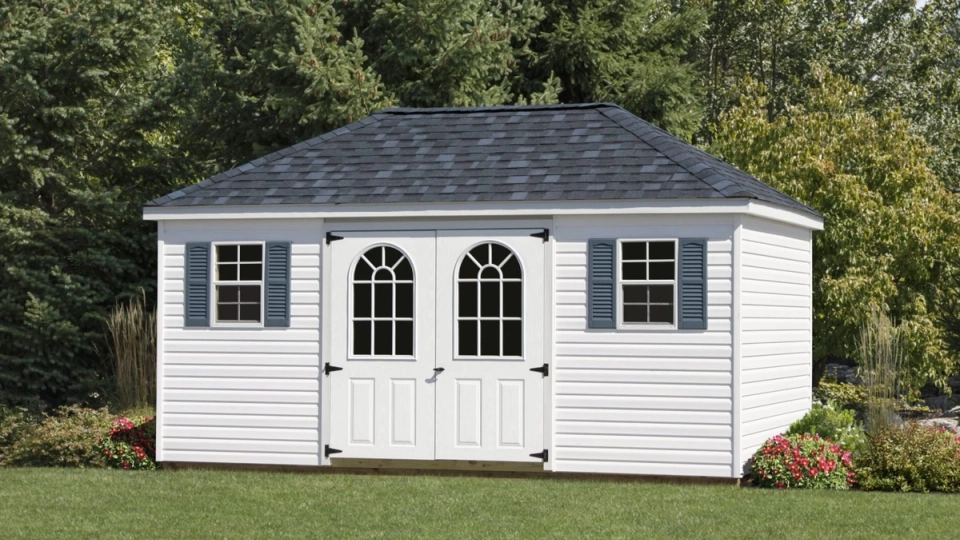

10×16 hip roof with optional glass in doors and shutters Hip Roof Shed Features
- 4 X 4 Pressure Treated Skid form the foundation
- Floor joists are standard 2 X 4’s 16“ on center
- 5/8“ SmartFinish Wood Flooring
- Walls are Standard with 2 X 4s 16“ OC
- Standard Wall Height is 6’7″ on 8′ & 10′ Wide Buildings
- And 7′ High Walls on 12′ & 14′ Wide Buildings
- ½” LP Smartside Siding Finishes the Exterior OR
- Optional (Cedar Creek Vinyl Siding w/ ½” Wood Sheating) OR
- Optional (Hardi-Plank Lap Siding)
- Set of Double Doors with Aluminum Diamond Plate Guard
- Includes 2- 18 X 27‘ Window
- Rafters are constructed of 2 X 4s 16‘ OC
- Hip Roof Design Roof
- Roof consists of ½” sheeting
- Tar Paper
- 30 year Architectural Shingles
- Standard Double Door widths:
- 8 wide building = 4‘ Wide x 6‘ High Doors
- 10 wide building = 5‘ Wide x 6‘ High Doors
- 12 and 14 wide buildings = 6‘ Wide x 6‘ 4″High Doors
View Additional Photos & Videos
Gallery| Size | Wood | Vinyl & Board & Batten | Hardie Plank |
| 6 X 8 | $2,240 | $2,705 | $3,015 |
| 6 X 10 | $2,415 | $2,935 | $3,275 |
| 8 X 8 | $2,435 | $2,955 | $3,305 |
| 8 X 10 | $2,595 | $3,165 | $3,545 |
| 8 X 12 | $2,770 | $3,395 | $3,805 |
| 8 X 14 | $2,940 | $3,615 | $4,065 |
| 8 X 16 | $3,110 | $3,835 | $4,315 |
| 10 X 10 | $3,010 | $3,705 | $4,165 |
| 10 X 12 | $3,270 | $4,045 | $4,555 |
| 10 X 14 | $3,535 | $4,385 | $4,955 |
| 10 X 16 | $3,770 | $4,695 | $5,305 |
| 10 X 18 | $4,040 | $5,045 | $5,715 |
| 10 X 20 | $4,300 | $5,385 | $6,105 |
| 10 X 22 | $4,565 | $5,725 | $6,505 |
| 10 X 24 | $4,820 | $6,055 | $6,885 |
| 10 x 26 | $5,080 | $6,395 | $7,275 |
| 10 x 28 | $5,345 | $6,745 | $7,675 |
| 10 x 30 | $5,625 | $7,105 | $8,095 |
| 12 X 12 | $3,530 | $4,385 | $4,945 |
| 12 X 14 | $3,815 | $4,755 | $5,375 |
| 12 X 16 | $4,100 | $5,125 | $5,805 |
| 12 X 18 | $4,385 | $5,495 | $6,235 |
| 12 X 20 | $4,670 | $5,865 | $6,655 |
| 12 X 22 | $4,960 | $6,235 | $7,095 |
| 12 X 24 | $5,240 | $6,605 | $7,515 |
| 12 X 26 | $5,525 | $6,975 | $7,945 |
| 12 X 28 | $5,810 | $7,345 | $8,365 |
| 12 x 30 | $6,095 | $7,715 | $8,795 |
| 12 X 32 | $6,390 | $8,095 | $9,235 |
| 12 X 34 | $6,670 | $8,465 | $9,655 |
| 12 X 36 | $6,970 | $8,855 | $10,105 |
| 12 X 40 | $7,530 | $9,585 | $10,945 |
| 14 X 20 | $5,630 | $7,115 | $8,095 |
| 14 X 24 | $6,380 | $8,085 | $9,225 |
| 14 X 28 | $7,065 | $8,975 | $10,255 |
| 14 X 32 | $7,740 | $9,855 | $11,265 |
| 14 X 36 | $8,415 | $10,735 | $12,275 |
| 14 X 40 | $9,095 | $11,615 | $13,295 |
Hip Roof Options
Colors
Paint Colors
Vinyl Colors
Shingle Colors
Dual Black
Earthtone Cedar
Dual Brown
Weather Wood
Dual Gray
Charcoal Gray
National Blue
Vintage Green
Metal Roofing Colors
Copper Metallic
Rural Red (Textured)
Burgundy (Textured)
Evergreen (Textured)
Burnished Slate (Textured)
Charcoal (Textured)
Black (Textured)
